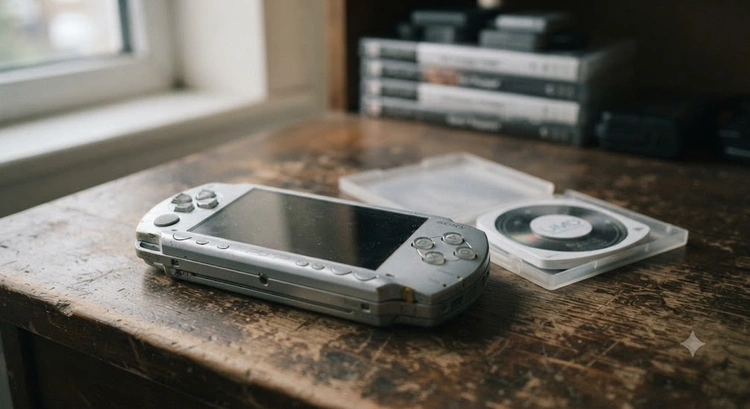

Sony PSP Teardown: Inside the Original PlayStation Portable

The original Sony PSP is one of the most recognizable handhelds ever made, and it's also the subject of a Mobility Today post from October 2006 with a title that promises more than it delivers: "Take apart a PSP In minutes.." This article looks at what that post actually was, then builds out a careful, verified picture of the original PSP-1000's hardware using real teardown documentation, kept strictly separate from the very different internals of later PSP models.

What Was the Original Sony PSP?

The original PlayStation Portable was Sony's first dedicated handheld gaming system, and it's now generally referred to by collectors and repair sites as the PSP-1000 to distinguish it from the redesigned models that followed. At launch it was simply "PSP" — the numeric model designation became useful only in hindsight, once Sony released the PSP-2000, PSP-3000, and PSP Go with meaningfully different internal hardware. Everything in this article refers specifically to that first PSP-1000 hardware revision.

The Japan Launch: December 12, 2004

Sony launched the PSP in Japan on December 12, 2004, at a retail price of ¥19,800. The launch was a strong one commercially, with reported first-day sales well into the hundreds of thousands of units — a sign of just how much anticipation had built around Sony's first true handheld game console entry to rival Nintendo's long-running portable lineup.

The US Launch: March 24, 2005

Sony confirmed the North American launch date in February 2005, and the PSP went on sale in the United States on March 24, 2005, at a launch price of $249. The gap between the Japanese and US launches — a little over three months — was fairly typical for hardware launches of that era, giving Sony time to ramp up manufacturing and localize software before a wider release.

Gaming, Media, and Wi-Fi in One Device

Part of what made the PSP notable at launch was that it wasn't pitched purely as a game machine. Alongside UMD-based games, it played music and video and could display photos, and its built-in Wi-Fi allowed for wireless multiplayer gaming and basic internet browsing. That combination — a game console that doubled as a portable media player with network connectivity — was a genuinely new pitch for a handheld in 2004 and 2005, well before smartphones made that kind of convergence unremarkable.

What Mobility Today's PSP Take-Apart Post Actually Was

The original Mobility Today page lived at mobilitytoday.com/news/sony_psp_take_apart.html, titled "Take apart a PSP In minutes.." and posted by David Ciccone on Tuesday, October 3, 2006. Archived copies of the page make its content clear, and it's worth being precise about what it actually contained: this was not an original teardown performed by Mobility Today. It was a short news post noting that Ciccone had "just noticed" a video on Kotaku showing how to take a PSP apart quickly, with a brief personal note about the experience recalling his prior work at DualCor. The post embedded that YouTube video directly and credited it plainly at the bottom: "Source: Kotaku."

The article used a small generic Sony logo graphic rather than any original photography, and archived versions show no teardown photos of Mobility Today's own taken at any point. Two reader comments were attached to the post at the time it was archived. In short: Mobility Today linked to and embedded someone else's PSP disassembly video rather than performing or photographing a teardown of its own, and no independently verified details about photo count, component identification, reassembly, or repair commentary exist in the surviving Mobility Today page beyond that short framing text — those specifics simply weren't part of what Mobility Today published.

The 4.3-Inch Widescreen LCD

The PSP-1000 used a 4.3-inch widescreen LCD with a 16:9 aspect ratio and a 480x272 pixel resolution — unusually large and sharp for a handheld game console at the time, and a major part of what made the PSP a credible portable video player in addition to a game machine.

The UMD Optical Drive

Games and movies were distributed on UMD (Universal Media Disc), a small proprietary optical disc format housed in a plastic caddy. The PSP-1000 included a UMD drive built into the top of the unit, with the disc loading through a hinged door — a mechanical component that, as with any optical drive in a handheld device, was one of the more failure-prone parts of the hardware over time.

Memory Stick PRO Duo Storage

Save data, downloaded content, music, photos, and video used Sony's Memory Stick PRO Duo format, inserted through a slot on the side of the unit. This was Sony's proprietary flash storage format of the era, distinct from the SD cards that had already become common elsewhere in consumer electronics.

The Removable Battery

The PSP-1000 shipped with a removable lithium-ion battery pack, accessed by removing a cover on the back of the unit. A removable, user-replaceable battery was standard practice for portable electronics in this period, well before sealed, non-removable batteries became the norm across most consumer devices.

Wi-Fi Networking

Wireless connectivity came via 802.11b Wi-Fi, letting the PSP-1000 connect to local networks for online multiplayer gaming, web browsing through its built-in browser, and other network-connected features. 802.11b was already a somewhat dated standard by 2004-2005 standards, but it was sufficient for the PSP's networking needs at launch.

Inside the PSP-1000: Main Board, CPU, and GPU

At the center of the PSP-1000 sat a main logic board carrying Sony's custom processor setup. Documented teardown and technical references describe the CPU as a custom Sony design, internally referred to as "Allegrex," based on a 32-bit MIPS architecture with floating-point capability. A separate graphics chip, running at 166 MHz with 2 MiB of embedded memory, handled the console's rendering work. This is a genuinely custom architecture built specifically for the PSP rather than an off-the-shelf mobile chipset of the kind used in later handhelds, and it's worth being cautious about going further than what's actually documented — specific die photos or individually labeled chip identifications beyond this general architecture aren't something this article is claiming to verify.

RAM, Speakers, and Controls

The PSP-1000 included 32 MiB of main system RAM, plus an additional 4 MiB of embedded DRAM associated with the graphics subsystem. Built-in stereo speakers sat near the bottom of the front casing, and the control layout included a directional pad, face buttons, shoulder buttons, and Sony's analog nub — a small, low-travel analog control distinct from the fuller analog sticks used on Sony's home console controllers, positioned to the left of the screen for movement input in games.

The LCD Assembly

Real teardown documentation of the PSP-1000, including guides published by iFixit, describes an LCD assembly connected to the main board through ribbon cable connectors that require careful, deliberate handling during disassembly — a detail consistent with how most small LCD assemblies of this era were integrated into handheld devices, where the screen itself is a separate module rather than something permanently fused to the front casing.

The UMD Drive Mechanism

The UMD drive mechanism includes a locking assembly near the hinge of the disc door, holding the loading mechanism in place and helping keep a disc properly seated during use. As a moving mechanical assembly inside a handheld that was frequently dropped, carried in bags, and used on the go, the UMD drive represented one of the more mechanically complex — and more wear-prone — components inside the PSP-1000, compared to the largely solid-state internals of later handhelds that dropped optical media entirely.

Wireless Module, Battery Compartment, and Memory Stick Reader

The Wi-Fi hardware sits on its own small module within the casing, documented in teardown coverage as supporting the PSP-1000's 802.11b connectivity, with a metal shielding plate positioned nearby for structural support and interference control. The battery compartment itself is accessed via the rear cover already described above, exposing the removable battery pack directly rather than requiring deeper disassembly just to swap it. The Memory Stick PRO Duo reader sits near the storage slot on the side of the unit, wired back to the main board to handle read and write access for save data and media.

PSP-1000 vs Later PSP Models

The takeaway is simple: internal photos, part numbers, and disassembly steps for a PSP-2000, PSP-3000, or PSP Go are not interchangeable with the PSP-1000, and treating them as if they were would misidentify real internal differences between these hardware revisions.

What Teardowns Reveal About Repairability

Looking at real teardown documentation of the PSP-1000 in general terms, a few repair themes come through clearly. Screen replacement involves working with a connected ribbon cable assembly rather than a simple drop-in part. UMD drive replacement means dealing with a mechanical assembly with a locking mechanism near the hinge, more involved than swapping a purely solid-state component. Analog nub and button repair generally involves accessing the front casing assembly beneath the controls. Battery replacement is comparatively simple, since the PSP-1000's removable design means it's accessible via a rear cover without deeper disassembly. None of this is meant as a step-by-step guide — it's a general, historical picture of what teardown documentation shows about how the device was put together, not instructions for attempting a repair.

A Safety Note on Old PSP Batteries Today

Worth flagging separately from anything Mobility Today's original 2008-era-adjacent post covered: original PSP-1000 lithium-ion battery packs are now roughly two decades old. Aging lithium-ion batteries can swell, leak, or otherwise degrade, and a battery in that condition shouldn't be charged or used. Anyone pulling an old PSP-1000 out of storage today should visually inspect the battery for swelling, damage, or corrosion before attempting to charge or power on the device — general modern-preservation guidance, not something drawn from Mobility Today's original coverage.

Why Repair Sites Still Distinguish the PSP-1000

Modern repair-resource sites, including iFixit, still maintain the PSP-1000 as its own distinct device entry, separate from the PSP-2000, PSP-3000, and PSP Go. That's a useful reminder on its own: two decades on, hardware-revision-specific identification still matters for anyone trying to source parts, follow a repair guide, or simply understand what's actually inside a given PSP model, since assuming any PSP is internally identical to any other PSP is exactly the kind of mistake that leads to using the wrong guide or the wrong part.

FAQ

What is inside an original Sony PSP?

The PSP-1000 contains a 4.3-inch widescreen LCD, a UMD optical drive, a main logic board with a custom Sony CPU and graphics chip, 32 MiB of RAM plus embedded graphics memory, a Wi-Fi module, a removable battery, and a Memory Stick PRO Duo reader.

Which PSP model was the original?

The original model, retroactively referred to as the PSP-1000 to distinguish it from later redesigns, launched in Japan in December 2004 and in the US in March 2005.

What is the PSP-1000?

PSP-1000 is the model designation now used to refer to the first-generation PlayStation Portable, as distinct from the later PSP-2000, PSP-3000, and PSP Go, which had significantly different internal hardware.

Does it use a UMD drive?

Yes. The PSP-1000 used a UMD (Universal Media Disc) drive built into the top of the unit for games and movies, a feature it shared with the PSP-2000 and PSP-3000 but not the UMD-less PSP Go.

Could the battery be replaced?

Yes. The PSP-1000 used a removable lithium-ion battery pack accessed by removing a rear cover, standard practice for portable electronics of that era.

What memory card did it use?

Memory Stick PRO Duo, Sony's proprietary flash storage format at the time, inserted through a slot on the side of the unit.

Did it have Wi-Fi?

Yes, 802.11b wireless networking, used for online multiplayer gaming and basic internet browsing.

Can an original PSP be repaired?

General teardown documentation shows the PSP-1000's screen, UMD drive, controls, and battery are all physically accessible and separable components, but this article isn't providing step-by-step repair instructions — it's describing what teardown documentation reveals about the device's construction in general terms.

What's different inside PSP-1000 vs PSP-2000?

The PSP-2000 doubled main RAM to 64 MiB and used a significantly redesigned internal layout and thinner casing compared to the PSP-1000, meaning internal parts and disassembly steps between the two models aren't interchangeable.

Is it safe to use an old PSP battery?

Not automatically. Original PSP-1000 batteries are now roughly two decades old, and any battery showing swelling, damage, or corrosion shouldn't be charged or used — inspect visually before attempting to power on a long-stored unit.

Did Mobility Today perform its own PSP teardown?

No. Mobility Today's October 2006 post embedded a PSP disassembly video originally published by Kotaku, along with a short personal note from the author — it wasn't an original teardown or set of original photos taken by Mobility Today itself.

Mobility Today's brief 2006 post about taking apart a PSP turns out to be a much smaller thing than its title suggests — a quick link to someone else's video, not an original teardown. The PSP-1000 itself, though, remains a genuinely interesting piece of 2000s handheld hardware: a custom-built processor and graphics chip, a UMD optical drive, a widescreen LCD, and a removable battery, all packed into a device that helped define what a portable game console could also do as a media player. Its internals are also a useful reminder that not every PSP is the same PSP — the 1000, 2000, 3000, and Go each represent genuinely different hardware, and treating them interchangeably misses exactly the kind of detail real teardown documentation exists to get right.
